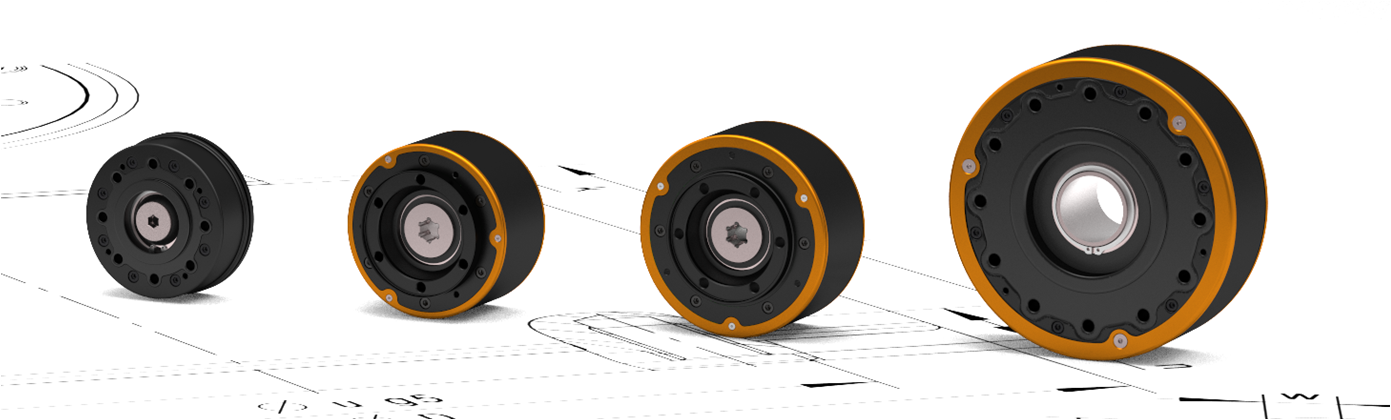

Drive Shaft

Applications: passenger car, commercial vehicle, mid-range and heavy duty engines

Benefits

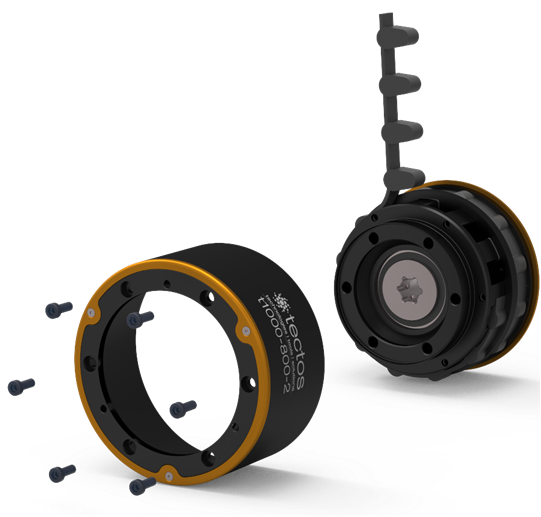

• Reduced setup time of test bench by modular design
• Vibration reduction (load of angular and axial)
• Reduced inertia by low weight
• High stiffness up to 110,000 Nm/rad
• High speed up to 18,000 min^-1 (catalog standard specification. customized 20,000 min^-1 or more)

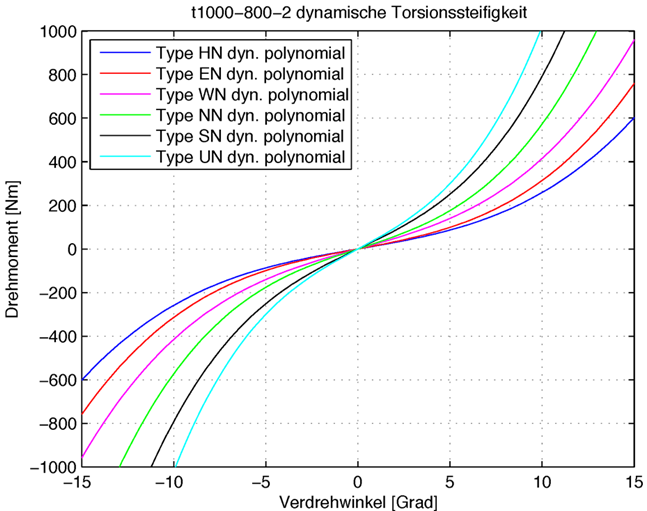

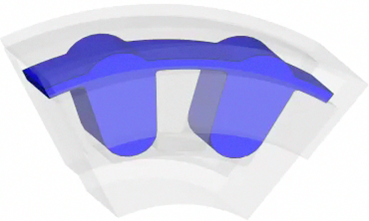

• By using elastomers of different hardness grades, the damping characteristics can be adapted to different requirements.

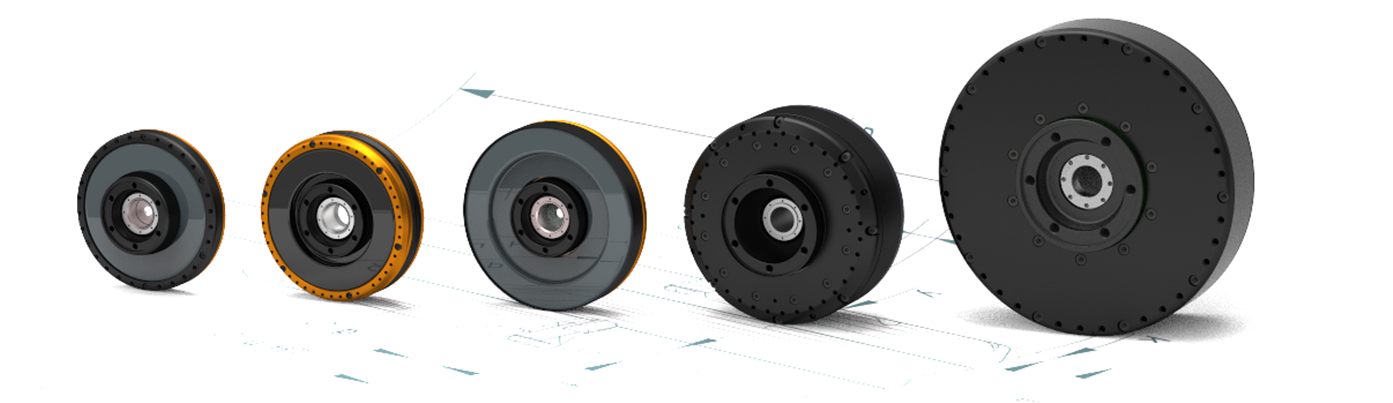

Applications: passenger car, commercial vehicle, mid-range and heavy duty engines

Benefits

• Reduced setup time of test bench by modular design
• Vibration reduction (load of angular and axial)
• Reduced inertia by low weight

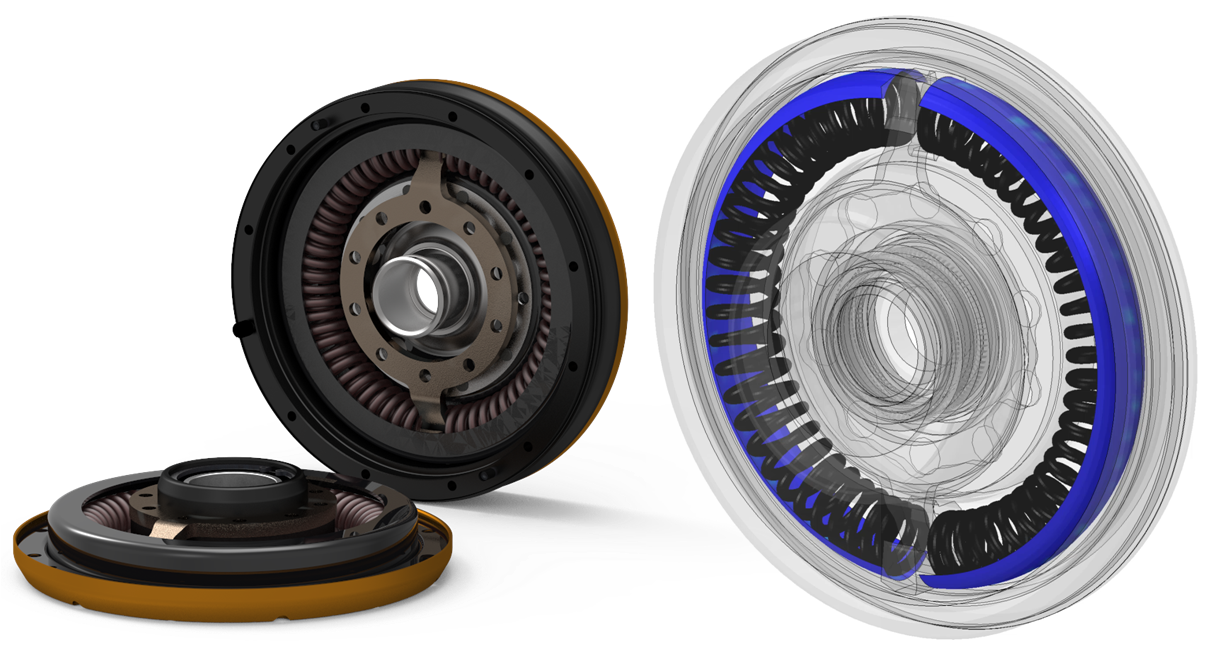

• It works like a dual mass flywheel.
• High stiffness up to 4000Nm/rad
• High speed up to 10,000min-1 (catalog standard specification. To be discussed separately for customized)

Features

• Suitable for development test bed
• Stiffness adjusted by spring placement

Features

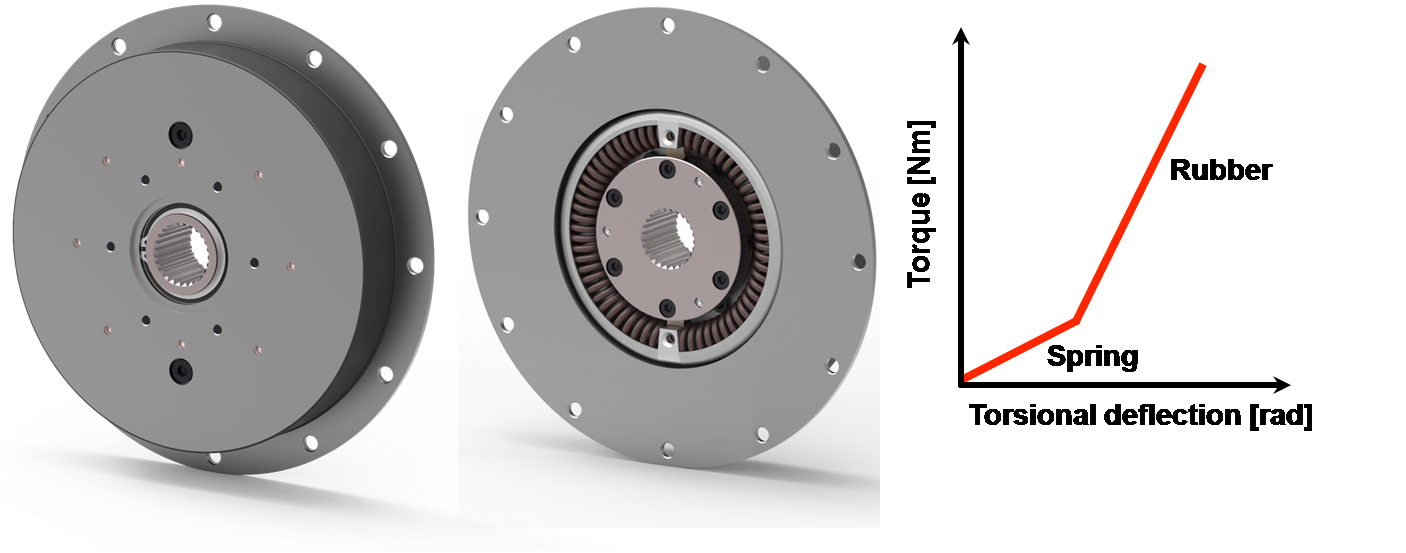

• The arc springs in combination with the elastomer work together seamlessly to fulfill their task perfectly in their respective load ranges.

* Specification is subject to change due to product modification.
