When a new engine is to be tested in a test bed, it is a particular challenge to select a drive shaft with the correct properties.
It is important not only to transfer the corresponding torque, but also to take into consideration the stiffness and distribution of the inertia values.
We conduct analysis to select a drive shaft most suitable for a specific engine for a given test cell. * Additional charge applies. Please contact us for further information

Contact

Features

tShaft is a fast analysis tool which selects a drive shaft most suitable for a specific engine for a geven test cell. All current engine types can be defined with just a few parameters. Integrated estimation algorithms are available for determining unknown quantities. The analysis is achieved with a non-linear torsional vibration calculation.

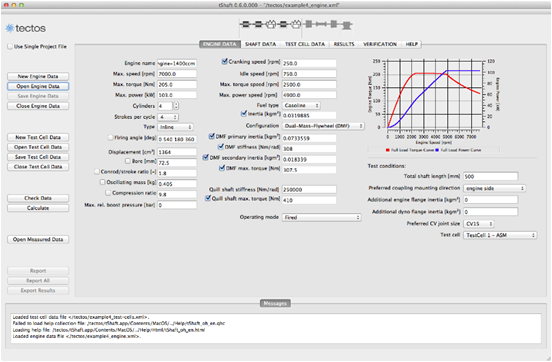

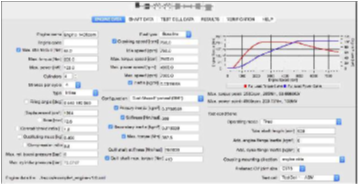

Engine parameter

tShaft – Shaft selection and verification tool

Features

support of various engine types: in-line, V-type, boxer
parameters which are not available estimation algorithms are provided
modeling support for flywheels, dual-mass fly-wheels, clutches, quill shafts and transmissions
administration of multiple test cells
possibility to add user-defined drive shafts
pre-selection of available drive shaft in a testfield
PDF reporting with torque and loss curves, for individual components
calculator to evaluate inertia and stiffness fromgeometric data

* tShaft is currently not yet sold in Japan.

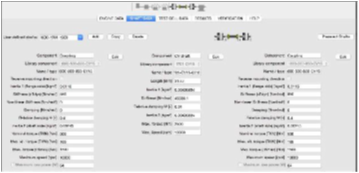

shaft parameters

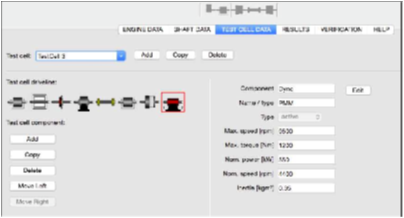

Test cell parameter

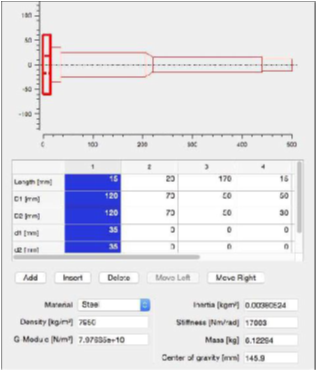

stiffness / inertia calculator
