Measurement system engineering

Case Study: Integration of a Measurement System for Engine Data Acquisition

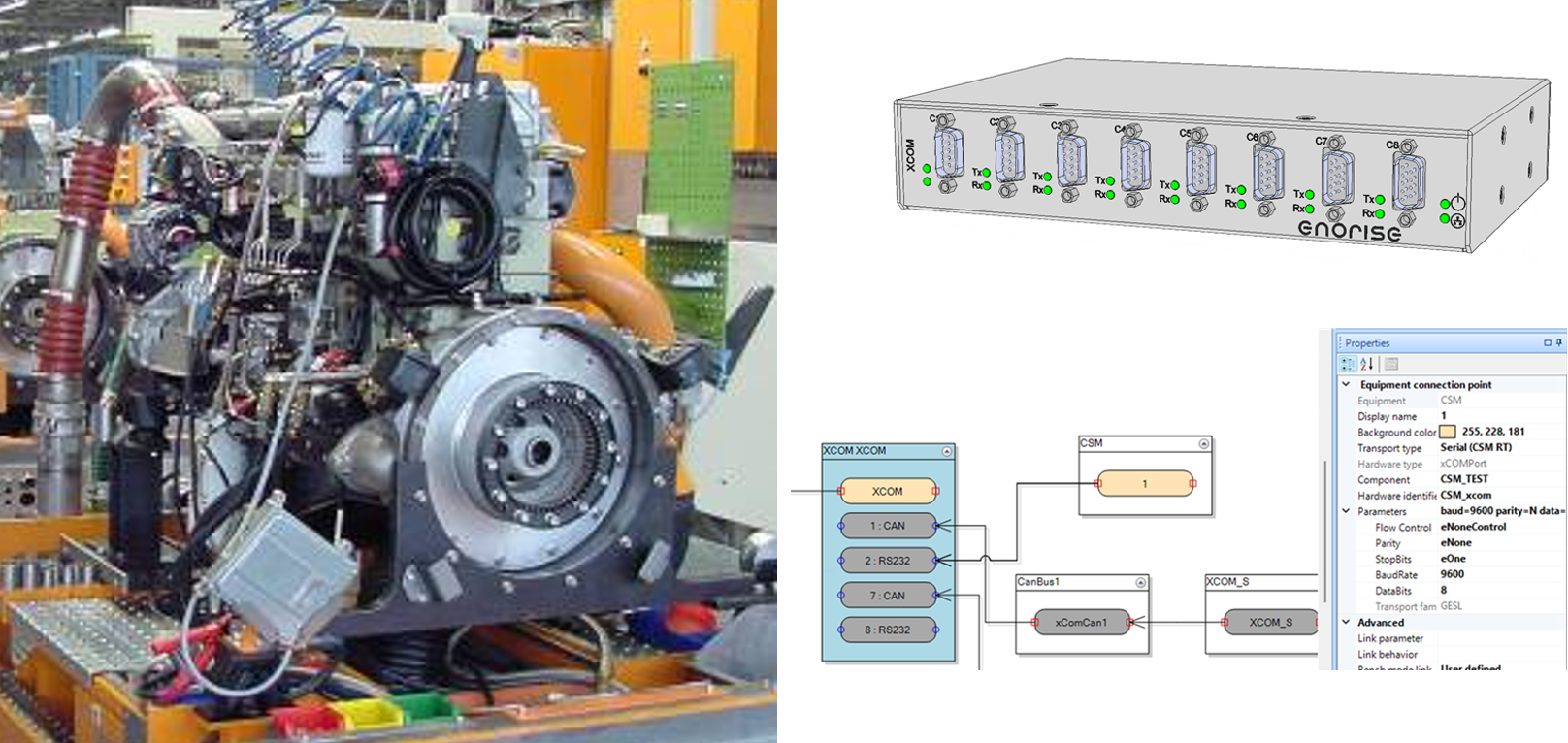

In engine development and evaluation, it is essential to acquire a wide variety of data—such as rotational speed, torque, temperature, pressure, vibration, and exhaust components —with high accuracy and proper synchronization. In measurement‑system integration, the process begins with selecting the appropriate sensors and designing their placement, optimizing the configuration for the engine characteristics and the test environment.

The system also integrates data‑acquisition devices, ECUs, and control systems to ensure stable, real‑time data collection.

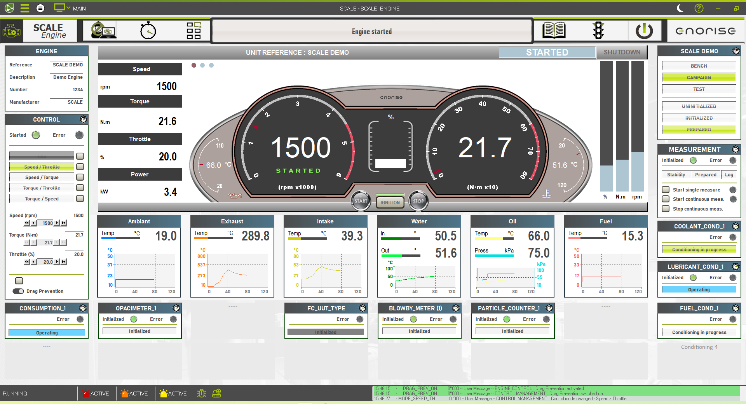

Furthermore, the acquired data is centrally managed through the communication network, enabling rapid visualization of combustion conditions, anomaly detection, and performance evaluation when linked with analysis software.
Through this level of measurement‑system integration, improvements in test efficiency, data quality, and the overall sophistication of engine development can be achieved.
