Solution of motor test
Product lineup
E-moter test bench
| Model | Rated power kW |
RatedTorque N.M |
Base speed min-1 |
Max speedmin-1 | Moment of Inertia kg.m² |
Voltage（V） /Current (A) |
|---|---|---|---|---|---|---|
| DX250 | 250 | 400 | 6,000 | 25,000 | 0.066 | 460/490 |
| DX300 | 300 | 600 | 4,780 | 21,000 | 0.129 | 495/554 |
| DX400 | 400 | 500 | 7,700 | 24,000 | 0.130 | 460/1,207 |
| DX500 | 500 | 600 | 8,000 | 20,000 | 0.139 | 460/1,554 |
※ Specifications are subject to change without prior notice due to ongoing improvements.

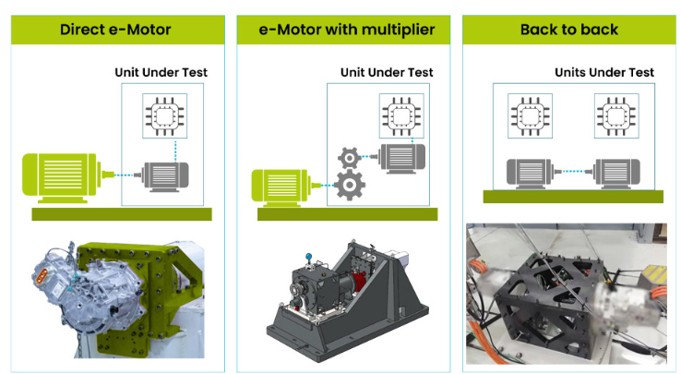

※ We support various types of motor testing.
Custom Specifications
We can also manufacture custom‑specification products tailored to your specific requirements.
Main specifications）
- Rated power：〜2,500kW
- Rated torque：〜2,000Nm
- Max speed：〜40,000min-1
Solution example

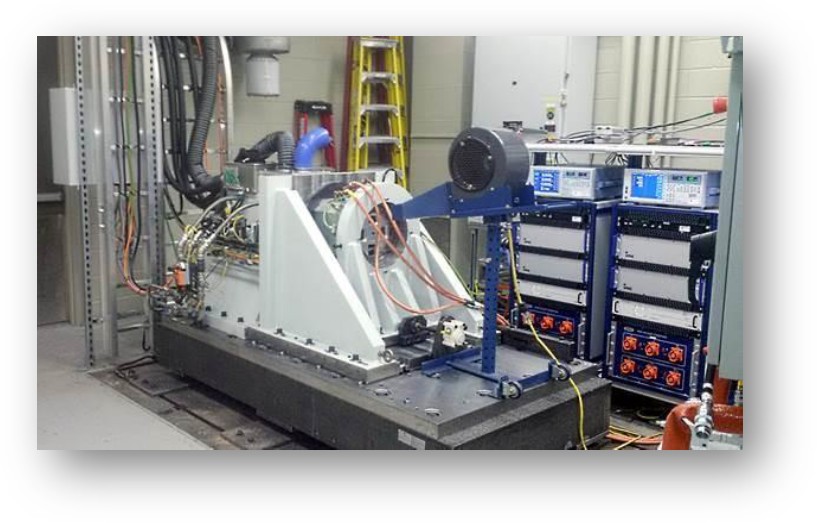

E-moter test bench
Scope of the project
- Automation system MORPHEE
- PM dynamometer（300kW/20,000rpm）
- Drive unit
- Drive shafts
Feature）
Performance evaluation of electric motors can
be conducted using a PM dynamometer.
By utilizing power regeneration, the system
reduces the customer’s overall energy cost.

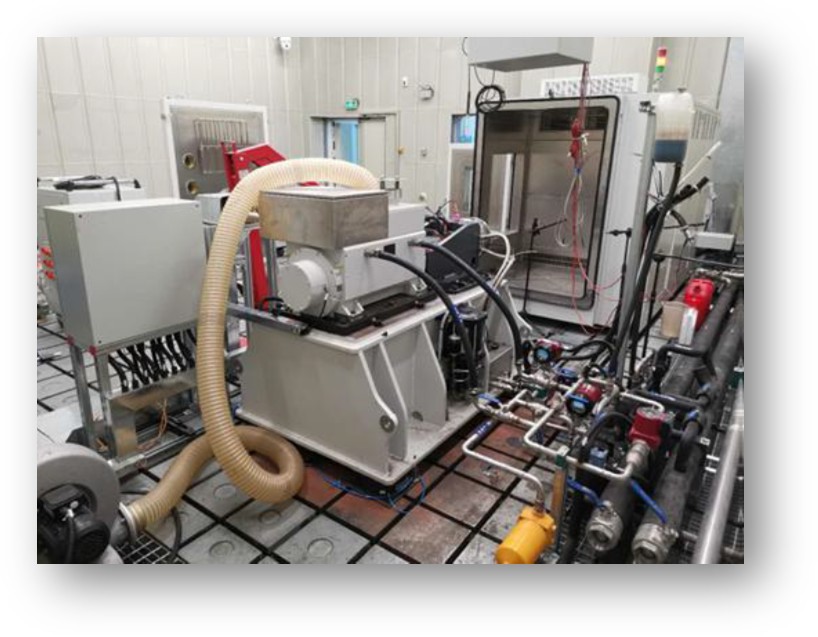

E-motor test bench
Scope of the project
- Automation system MORPHEE
- PM dynamometer（300kW/20,000rpm）
- Drive unit
- Constant‑Temperature Chamber
- Drive shafts
Feature）
Performance evaluation of electric motors can
be conducted using a PM dynamometer.
By utilizing power regeneration, the system
reduces the customer’s overall energy cost.
