Dyno controller

Overview of EC dyno controller

This controller is dedicated for eddy current dynamometer.
It is a control measurement system that conduct measurement and feedback control of test piece by using eddy current dynamometer.
It is equipped with measurement function for speed and torque, control function for speed and torque of test piece by manual or automatic, and alarm function that detects and processes system malfunction.

Features
  • Equipped with torque, speed and alarm displays.
  • Steady control by digital PID.
  • Installed on the table or in the rack.
  • Supports external control from external upper system.
  • Easy operation by rotary encoder.
System and application sample

Our dyno controller can control and measure by programmed operation from upper system.
And it supports expansion to existing system.

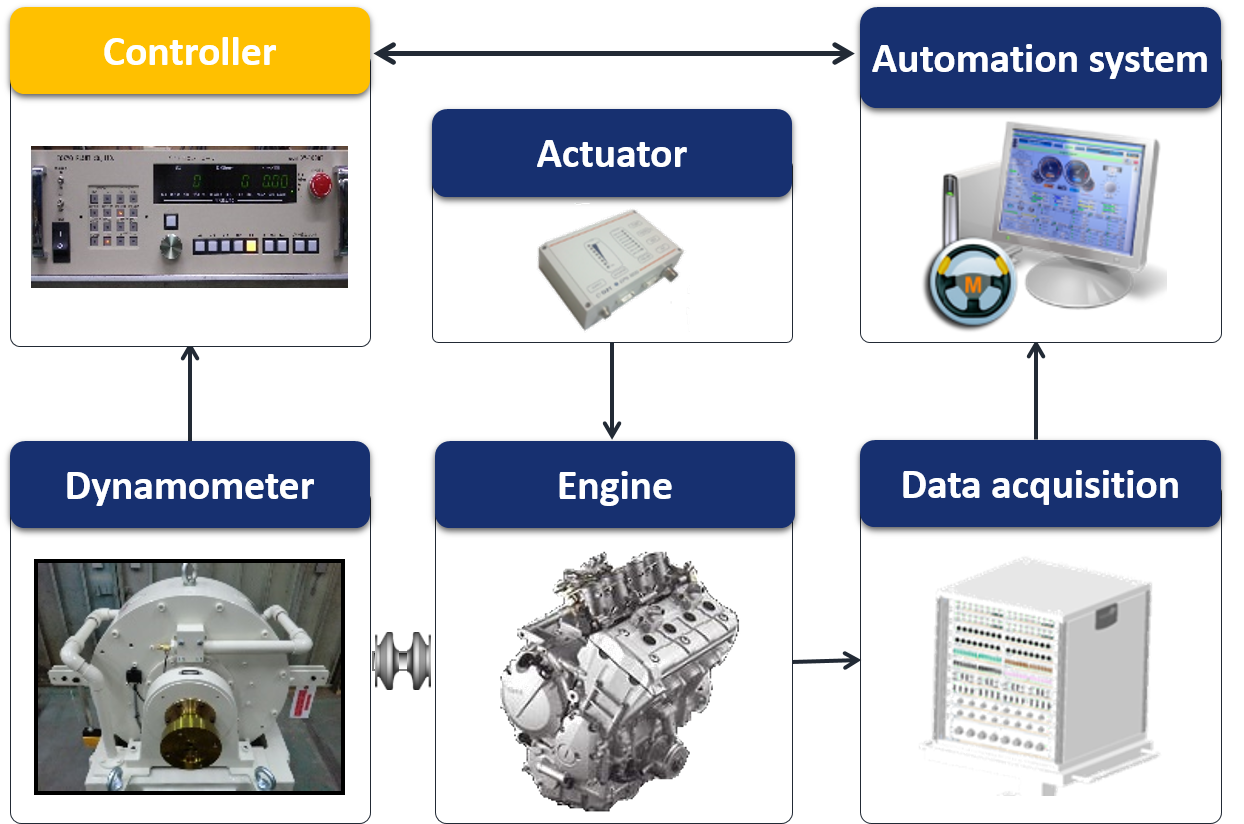

Standard test bed system (reference)

Specification
Model DY-1000T
Control mode Manual control: Controls torque and speed with set value of the manual potentio dial.
Constant speed control: Conduct the feedback control to set speed.
Constant torque control: Conducts the feedback control to set torque.
External control: Receives programmed operation from an external automation system to conduct control and measurement.
Control accuracy Constant speed control: ±5 min-1
Constant torque control: within ±0.3 % F.S.
Control accuracy may not fit within the range due to the condition of engine and dyno, setting of PID adjustment and effect of cooling water pressure.
Alarm setting and monitoring Emergency stop: Conducts control stop with emergency button when abnormal condition.
Overspeed: Monitors the upper limit of dyno.
Overtorque: Monitors the upper limit of dyno.
Outlet water temp.: Monitors the outlet water temp. (60 °C) of dyno.
Bearing temp.: Monitors the bearing temp. (80 °C).
External alarm: Monitors the external device with contact signal input.
External I/O Analog voltage I/O (DC 0-10V)
Necessary electric power Three-phase AC200V, 50/60Hz, 13A
Size (mm) Main body: W480 x H150 x D350 (Built-in cabinet type)
With sheet metal case: W500 x H193 x D350
Mass Main body: approx. 10kg

* Specification is subject to change due to product modification.
