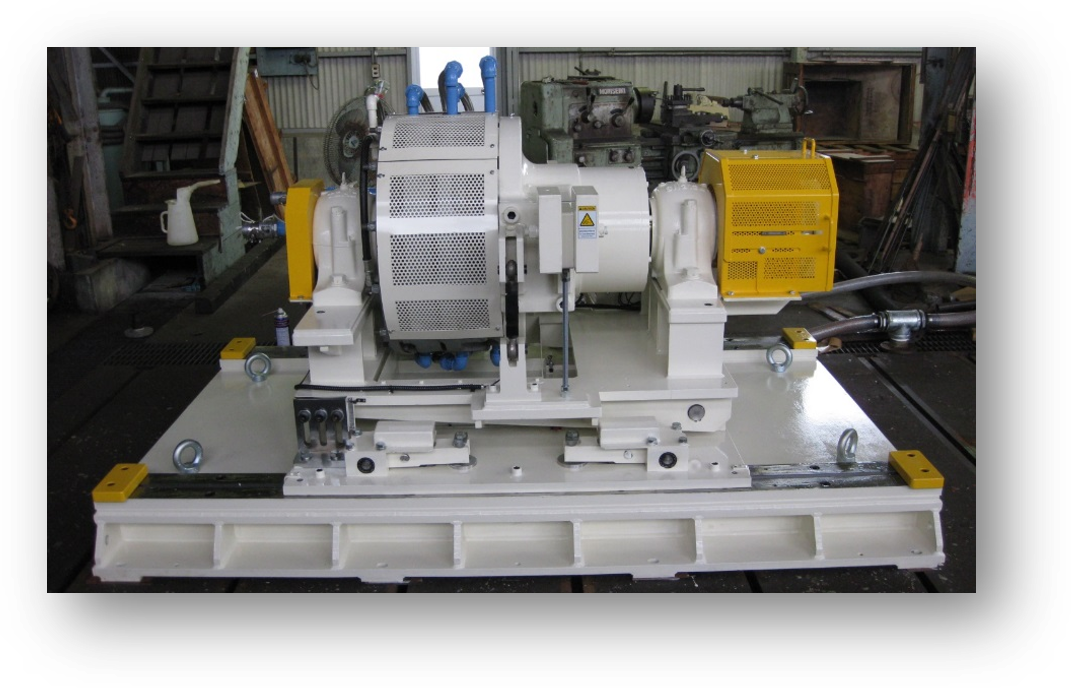

Dick brake dynamometer
Dick brake dynamometer
Output range：100– 345 kW /～50,000Nm
Product Lineup For details
please refer to the product catalog.
| Model | Direction of Rotation | Main Specifications | Applicable Engines |
|---|---|---|---|
| PCD type | - | 30～100kW(1,500Nm)Low power/Low torque | Axle performance testing for construction and agricultural machinery |
| PKD type | - | 120～345kW(50,000Nm)High power/High torque | Axle performance testing for construction and agricultural machinery |
User Case Example

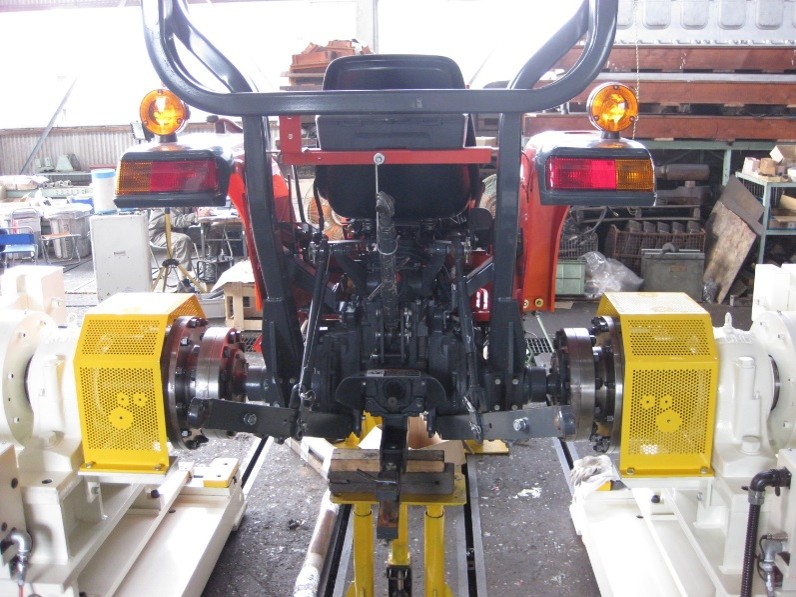

Test bench for axle performance test
Scope of the project
・2sets of disk brake dynamometers
・Control measurement system
・Air control unit
・Adapter for axle
・Frame(sliding type)
Feature
We can perform characteristic evaluations of axle performance for agricultural machinery.
