Portable type Hydraulic dynamometer
Portable type Hydraulic dynamometer
Output range: 10kW – 1,000kW
We are the only manufacturer in Japan that offers portable type hydraulic dynamometers.
Our extensive product lineup provides optimal solutions for a wide range of customer applications.
Product Lineup For details
please refer to the product catalog.
| Model | Direction of Rotation | Main Specifications | Applicable Engines |
|---|---|---|---|
| PTB type | One-direction CW or CCW | 10 ～ 1,000kW /Middle speed range | Automobiles, trucks, construction machinery, agricultural machinery, and marine vessels |
User Case Example

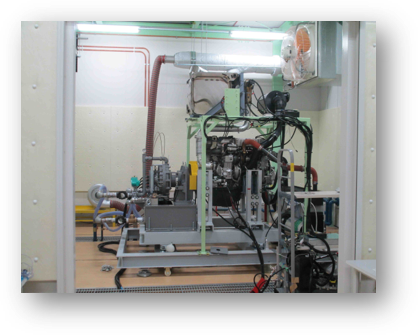

Portable engine test stand
Scope of the project
・Portable type Hydraulic dynamometer

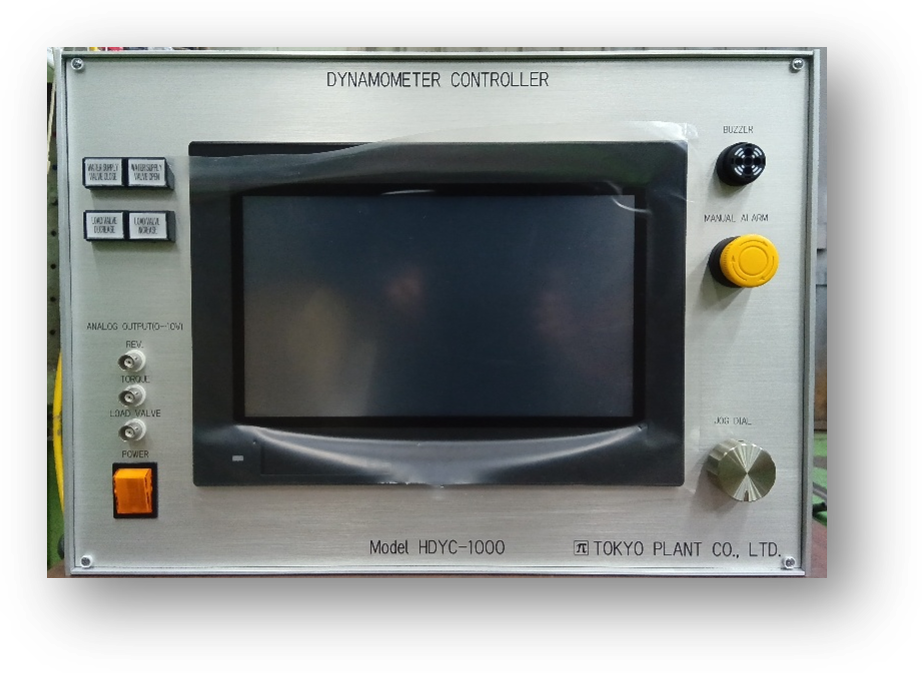

・Dynamometer controller
・Automation system
・Fuel flow meter
・Date acquisition system
・Drive shaft, Flywheel adapter etc
・Engine mount

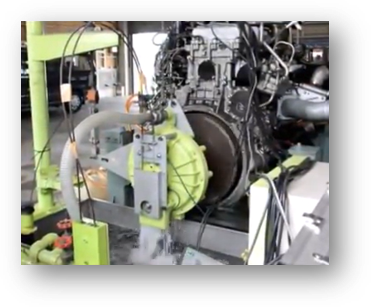

Feature
It can be installed directly on the factory floor.
No rail base is required.
The engine flywheel can be directly coupled.

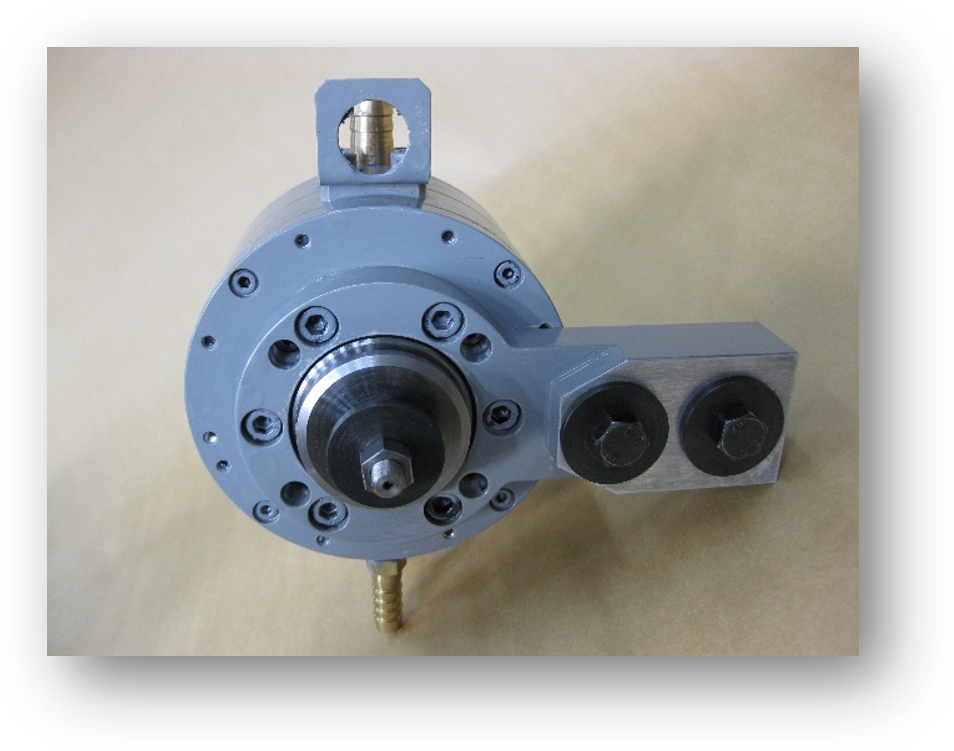

Super small type (10kW)
Scope of the project
・Portable type Hydraulic dynamometer
Feature
It is a non‑fixed type that can be connected directly to the unit under test.
It can also be used within a full 360° portable operating range.
