Portable Hydraulic Dynamometer

PTB & PDY types

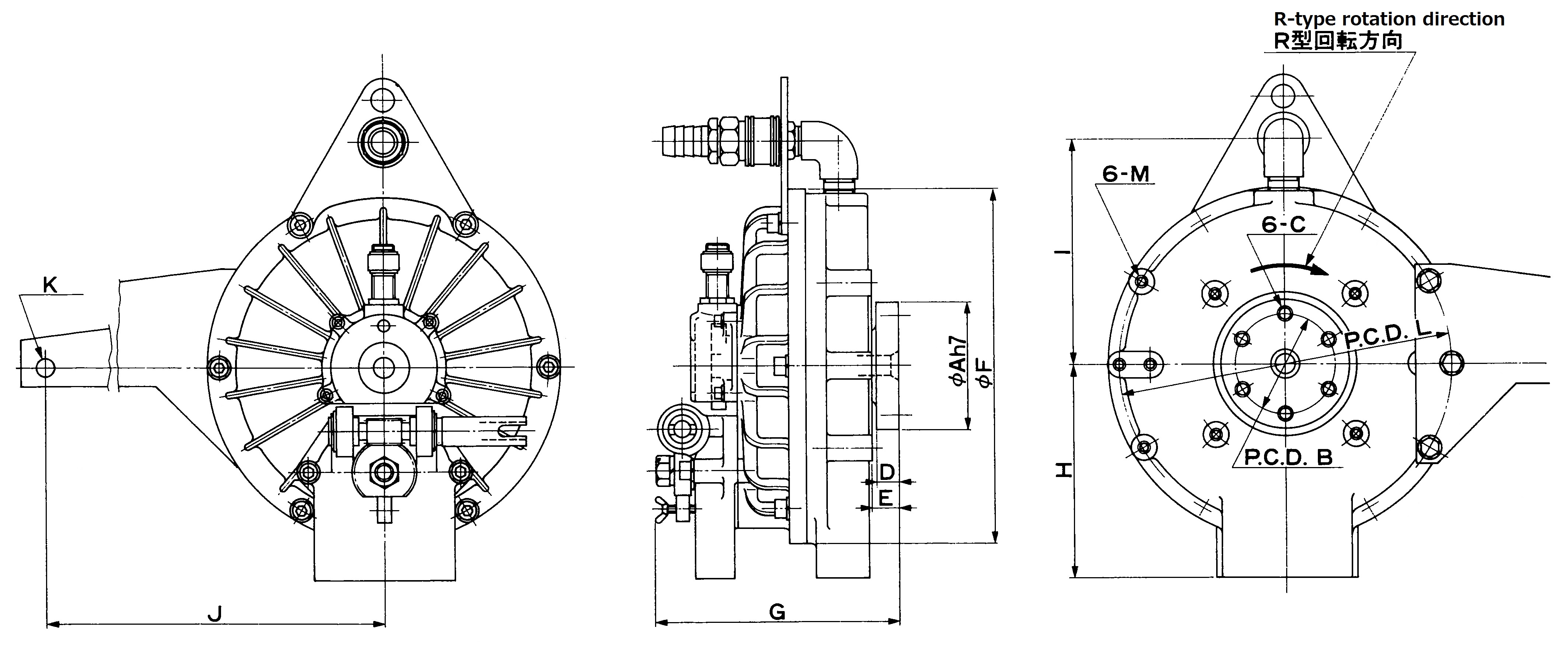

Unit: mm

Model Mass
kg
A B C D E F G H I J K L M
PTB-22K 7 80 60 M8 x
1.25
12 18 190 200 120 156 358.1 6.1 176 M6 x
1.0
PTB-45K 10 90 70 M10 x
1.5
15 18 218 213 132 169 358.1 6.1 200 M8 x
1.25
PTB-75K 12 90 70 M10 x
1.5
16 19 250 228 150 170 358.1 6.1 232 M8 x
1.25
PTB-110K 17 110 85 M10 x
1.5
16 20 300 250 180 196 358.1 6.1 280 M10 x
1.5
PTB-150K 23 130 110 M12 x
1.75
20 23 335 265 200 209 500 12.1 310 M12 x
1.75
PTB-220K 38 150 120 M16 x
2.0
25 30 416 320 230 275 500 12.1 386 M12 x
1.75
PTB-370K 70 180 145 M20 x
2.5
25 30 475 356 280 294 500 12.1 440 M16 x
2.0

* Specification is subject to change due to product modification.
